Description
The data logger interface connects to your computer (Mac and Windows) via a USB port. It’s an ideal device for taking long-term measurements, creating your own sensors, or measuring with multiple sensors simultaneously.

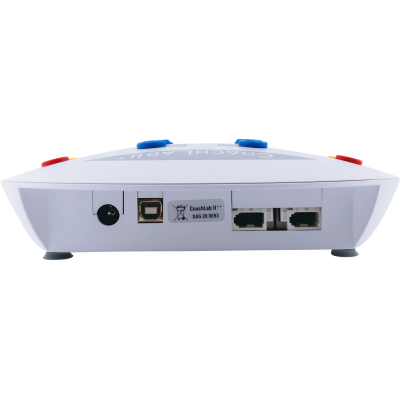

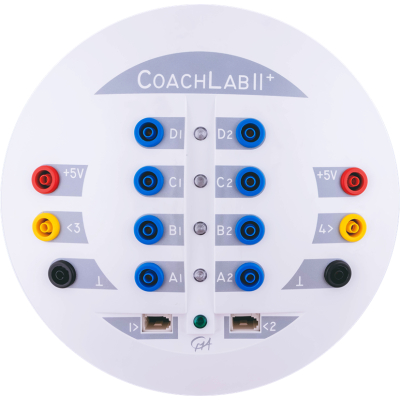

CoachLab II+ connectors:
- Two analog BT inputs for sensors (with sensor recognition)
- Two 4-mm inputs (without sensor recognition)
- Two digital BT inputs

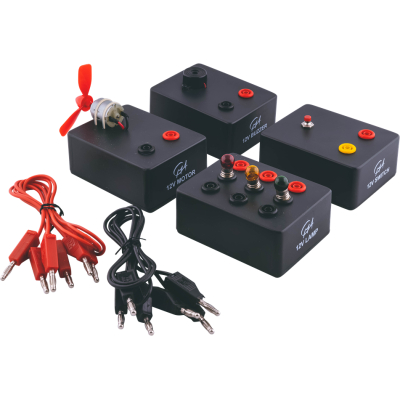

- Four 4 mm outputs with variable power levels to control various actuators

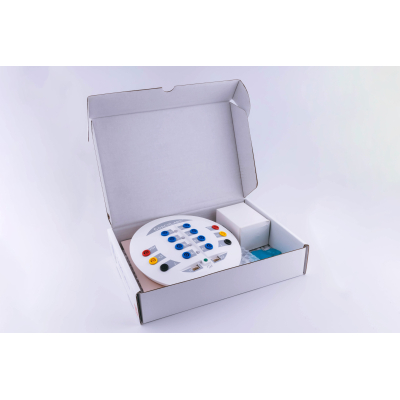

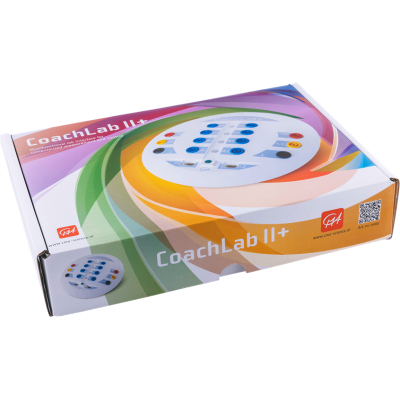

CoachLab II+ delivery includes a cable and power adapter.
Technical specifications:
- Processor: PIC18F66J50
- Memory: 64 KB FRAM
- Power Supply: Adapter (220 V AC/DC 12 V/1.25 A)
- Computer connection: Via USB-A cable
- Sampling: Max. 100 kHz
- Status LEDs: The green LED indicates power supply, while the red/orange/green LEDs indicate the four output channel states
- Warranty: 3 years
See DOWNLOADS for full specifications.
