System Board

System Board

Item nr. 0020 Category
The original CMA system board. Made in the EU, so you are guaranteed quality and safety. With the System Board, you can let students quickly and safely design and test information processing systems. They will learn about digitizing analog signals, processing digital signals using digital processors, and using signals to control actuators. The System Board comes with a power adapter. Ideal for lessons on automation, sensors, ICT, and physics.

Available on backorder (Shipping in 2–3 weeks)

Add to wishlist
View wishlist

Description

This latest system board has both BT inputs for directly connecting CMA sensors, as well as 4mm connectors for connecting older sensors or custom-built sensors to the system board.

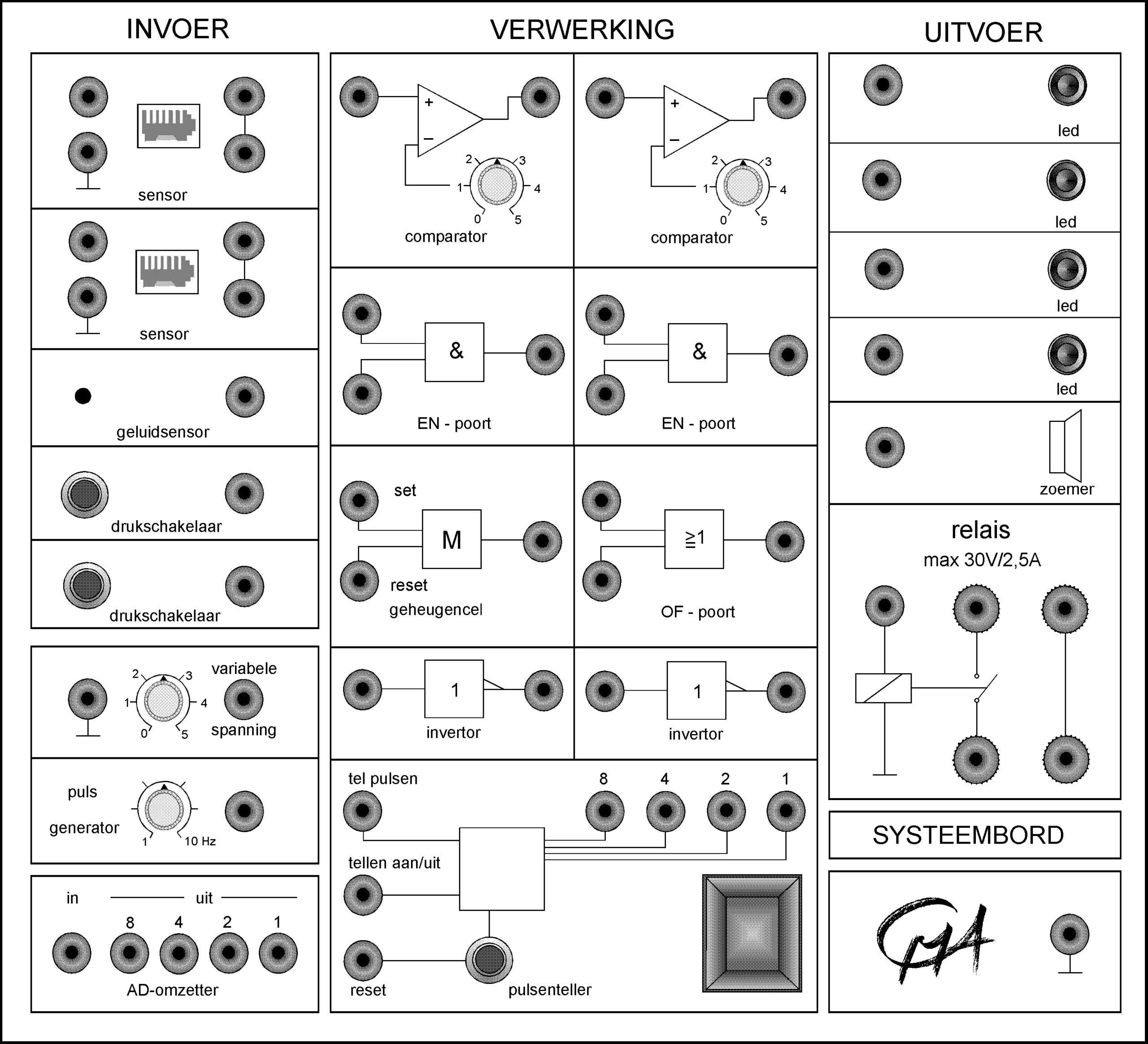

The System Board has three sections (blocks):

  • The input block is the component that collects data from the environment and prepares it for processing, for example, the signal from a sensor in a measurement and control system or from a controllable voltage
  • The processing block contains building blocks that process the signal (logic gates, comparator, etc.)
  • The output block converts the signals into a usable format for the user (measurement system) or into a signal for action (control system)

More technical specifications about the System Board you can find in the product manual, under downloads.

There you can also download the system board drawing.

Additional information

Weight 2,1 kg

Product manual

Download

System board drawing

Download
