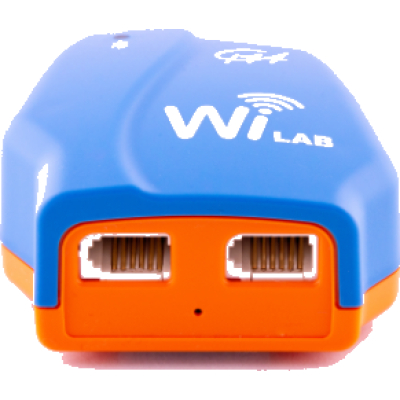

WiLab wireless interface

Description

All the CMA wired BT sensors can be connected to Wilab’s inputs, they are powered by the WiLab interface.
Additionally, WiLab has two controllable built-in devices, a buzzer and an RGB LED, which can be used in simple control / programming experiments.
WiLab is equipped with its own processor and memory, enabling measurements at high sampling rates of up to 100 000 Hz with accurate independent timing.

Technical specifications:

• Processor: PIC32MZ
• Memory: 512 kB Flash / 128 kB FRAM
• Power: Rechargeable battery Li-ion 3.7 V, 960 mAh / USB Adapter
• USB: USB-A to USB-C Power Adapter (100-240 V AC, DC 5V/1A)
• Built-in programmable sensor: RBG colour LED and one buzzer
• Sampling: Max. 100 kHz
• Sensor inputs: 2x analog BT (right handed)
• Battery life: 8h
• Warrantee: 3 years
